  • Description

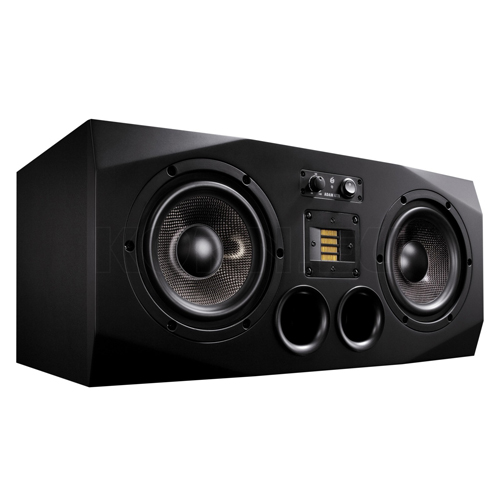

    • The ADAM Audio A77X combines all of the technical innovations in the AX range. An active horizontal 3-way studio monitor, the A77X provides an attractive entree into midfield monitoring with transparent high-frequency reproduction, clear midrange, and superior transient response. The A77X's large, front-baffle bass reflex ports are precisely matched with the bass/midrange drivers, giving the speaker powerful, yet controlled low-end punch. Each of the system's two woofers is each driven by a 100W PWM amplifier; which, in combination with the 50W Class AB tweeter amp, enables a pair of A77Xs to achieve an impressive maximum SPL of 122dB at one meter. Engineered in Berlin to the strictest tolerances, ADAM's AX series monitors feature cutting-edge technology, including the company's renowned, handcrafted X-ART accelerated ribbon tweeter. With its compelling price/performance ratio, the A77X brings ADAM Audio's world-class monitor performance to commercial recording and broadcast facilities and well-equipped home studios alike.
    Features
    • Horizontal 3-way system with 2 x 7" carbon/Rohacell/glass fiber bass/midrange drivers and X-ART tweeter
    • X-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances
    • Large bass reflex ports, volume control, and power switch on the front baffle
    • Highly efficient 250W PWM tri-amplification
    • Linear frequency response of 38Hz–50kHz
    • Maximum peak sound pressure per pair at 1m ≥ 122dB
    • Analog XLR and RCA inputs
    • 2-year warranty; optional extension to 3 years with product registration
    • Sold individually

    Specifications

    • Powered:       Yes
    • Power Configuration: Tri-amped
    • LF Driver Size:         2 x 7" woofer
    • LF Driver Type:        Carbon, Rohacell, Glass Fiber
    • HF Driver Size:         2" X-ART tweeter
    • LF Driver Power Amp:         2 x 100W (RMS)
    • HF Driver Power Amp:         50W (RMS)
    • Frequency Response: 38Hz-50kHz
    • Crossover Frequency:         400Hz, 3000Hz
    • Maximum Peak SPL:  ≥122dB SPL @ 1m
    • Input Types:  1 x XLR, 1 x RCA
    • Enclosure Type:       Ported
    • Height:          9.5"
    • Width: 21"
    • Depth: 11"
    • Weight:         28.2 lbs.
    • Manufacturer Part Number:  A77XA
