Description

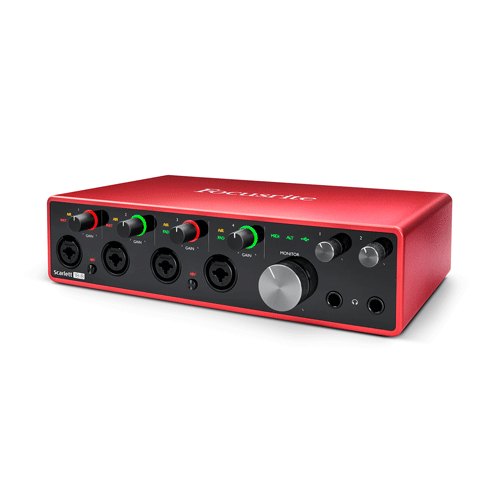

• Focusrite's Scarlett 18i8 is an ideal audio interface for engineers and producers who have to adapt to ever-changing recording situations. Four award-winning Focusrite mic/instrument preamps and two instrument inputs are right on the front panel where you need them.
• You know you perform better when you've got a great-sounding monitor mix with everything you need to hear to be inspired — for example, reverb and delay on a guitar solo. The Scarlett 18i8's super-low latency lets you monitor with native plug-in effects in real time, so you can hear your parts as you envision them and record better performances.

Features

• High-performance 24-bit/192kHz converters.
• 4 upgraded 3rd-generation Scarlett mic preamps.
• Switchable Air mode gives your recordings a brighter, more open sound.
• 2 high-headroom instrument inputs for bass, guitar, or synths.
• 8 line inputs, 4 balanced analog line outputs.

Specifications

• SUPPORTED SAMPLE RATES
• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

• MICROPHONE INPUTS
• Frequency Response
• 20Hz - 20kHz ± 0.1dB
• Dynamic Range
• 111dB (A-weighted)
• THD+N
• <0.0012%
• Noise EIN
• -128dBu (A-weighted)
• Maximum Input Level
• 9dBu (at minimum gain)
• Gain Range
• 56dB
• Impedance
• 3kΩ
• LINE INPUTS 1-4 (VARIABLE GAIN)
• Frequency Response
• 20Hz - 20kHz ± 0.1dB
• Dynamic Range
• 110.5dB (A-weighted)
• THD+N
• <0.002%
• Maximum Input Level
• 22dBu (at minimum gain)
• Gain Range
• 56dB
• Impedance
• 60kΩ
• LINE INPUTS 5-8 (FIXED GAIN)
• Frequency Response
• 20Hz - 20kHz ± 0.1dB
• Dynamic Range
• 110.5dB (A-weighted)
• THD+N
• <0.002%
• Maximum Input Level
• 18dBu (at minimum gain)
• Impedance
• 44kΩ
• INSTRUMENT INPUTS
• Frequency Response
• 20Hz - 20kHz ± 0.1dB
• Dynamic Range
• 110dB (A-weighted)
• THD+N
• <0.03%
• Maximum Input Level
• 12.5dBu (at minimum gain)
• Gain Range
• 56dB
• Impedance
• 1.5MΩ
• LINE/MONITOR OUTPUTS
• Dynamic Range (Line Outputs)
• 108dB
• THD+N
• <0.002%
• Maximum Output Level (0 dBFS)
• 15.5dBu
• Impedance
• 430Ω
• HEADPHONE OUTPUTS
• Dynamic Range
• 104dB (A-weighted)
• THD+N
• <0.002%
• Maximum Output Level
• 7dBu
• Impedance
• <1Ω
