Description

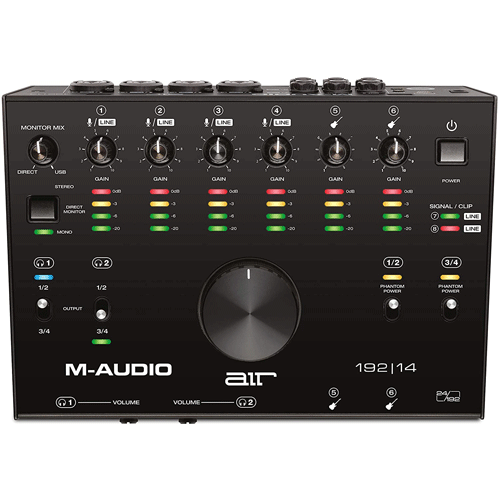

• M-Audio AIR 192 | 14 is an intuitive and easy-to-use audio interface for creating 24-bit / 192 kHz studio-quality recordings. Featuring a professional-grade metal chassis and large center volume knob, the AIR 192 | 14 features exclusive Crystal ™ preamps and A / D converters that deliver best-in-class performance. It features (4) ¼-inch XLR + TRS combo inputs, (2) ¼-inch line inputs, and (2) ¼-inch instrument inputs.

• It also has (2) ¼-inch stereo main outputs and (2) assignable ¼-inch outputs. Two musicians can have their own separate mixes while recording using the (2) ¼-inch headphone outputs with independent level controls. This interface connects to a Mac or PC through a standard USB or USB-C port using one of the two included cables. The high-speed USB connection allows for zero latency in monitoring, making the recording process easier.

Features

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
• Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
• VU LED meters for dialing in the perfect level
• (4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
• MIDI input/output for connecting virtually any external MIDI gear
• Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
• (2) ¼” headphone outputs with independent source and level controls
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal
• *Round trip latency is dependent on buffer settings, and computer hardware

Specifications

• Mic Inputs 1–4 (balanced XLR)
• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.001 (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Preamp EIN: -137dBu (40Ω source, A-weighted) -129dBu (150Ω source, unweighted)
• Max Input Level: +14dBu
• Gain Range: 62dB
• Line Inputs 1–4 (balanced ¼” TRS)

• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.001 (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.1dB)
• Max Input Level: +30dBu
• Gain Range: 61dB
• Inst Inputs 5-6 (unbalanced ¼” TS)
• Dynamic Range: 110dB (A-weighted)
• THD+N: 0.001 (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.1dB)
• Max Input Level: +16dBu
• Gain Range: 59dB
• Input Impedance: 1 MΩ
• Fixed Line Inputs 7–8(balanced ¼” TRS)
• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.001 (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.1dB)
• Max Input Level: +17dBu
• Line Outputs 1–2 (balanced ¼" TRS)
• Dynamic Range: 112dB (A-weighted)
• THD+N: 0.002 (1kHz, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Maximum Output Level: +17dBu
• Fixed Line Outputs 3–4 (balanced ¼” TRS)
• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.002 (1 kHz, -1 dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Maximum Output Level: +17dBu
• Headphone Outputs (stereo 1/4”)
• Dynamic Range: 111dB (A-weighted, 32Ω load)
• THD+N: 0.002 (1kHz, -1 dBFS, 10mW/channel into 32Ω load)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Maximum Power Delivered: 160mW (1 THD, 32Ω load)
• Maximum Output Level: +15 dBu (unloaded)
• Impedance Range: 32Ω – 600Ω
• General
• Other Connectors:
• 1⁄8” (3.5mm) MIDI input
• 1⁄8” (3.5mm) MIDI output
• USB Type-C port
• Power adapter input
• Power Adapter: 12VAC, 2A, centre-positive (included)
• Dimensions: 3.24" x 10.2" x 7.44"
• Weight: 1.8kg
