Description

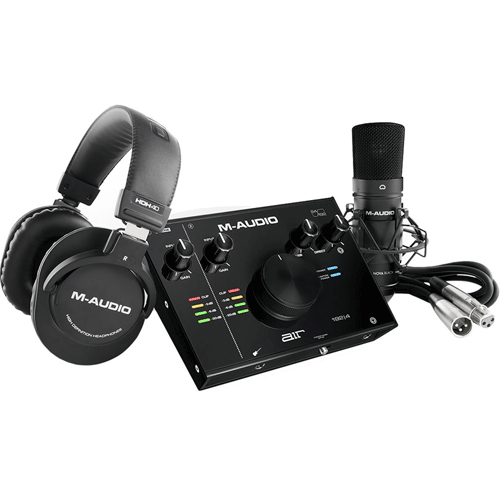

• The M-Audio AIR 192 4 Vocal Studio Pack is a portable and powerful audio interface that allows you to connect a microphone or line instrument to your computer. Just plug the unit into your USB-C or USB port and experience clean, clear, and transparent sound.
• Once you plug the AIR 192 4 audio interface you can expect super high-quality outputs and clean and transparent recordings. This sleek unit is designed with portability and quality in mind. This intuitive device sits atop your desk and allows you to plug in microphones, instruments, and effects unit. As well as beautiful recordings, it also outputs clean audio through either stereo outputs or headphones. It delivers zero-latency monitoring through direct output. As well as sounding great it's also very easy to use; the central knob is nice and tactile, and the onboard gain controls respond nicely to change.
• No matter how big your studio is - you always deserve amazingly clean and transparent audio. The M-Audio AIR 192 4 delivers this with assurance thanks to the superb Crystal Preamps. These preamps guarantee the best possible sound from your microphone and capture your performance perfectly.

Features

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
• Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality VU LED meters for dialling in the perfect level
• XLR+¼-inch TRS combo input with dedicated signal circuit and (1) ¼-inch instrument input with a dedicated signal circuit for the most accurate sound available
• Stereo ¼-inch outs; ¼-inch headphone out with independent level control
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal
• Pro Software Suite Included – Pro Tools | First M-Audio Edition, Ableton Live Lite, Eleven Lite, Avid Effects Collection and 2GB of Touch Loops content, plus the Creative FX Collection, Xpand!2, Mini Grand, Vacuum and BOOM from AIR Music Tech

Specifications

• Microphone Input 1:
• Frequency Response: 20Hz– 20kHz (+0.1dB)
• Dynamic Range: 104dB (A-weighted)
• Signal-to-Noise Ratio: 104dB (+1.0dBu, A-weighted)
• THD+N: 0.003
• Preamp EIN: -128dBu (max gain, 150Ω source, A-weighted)
• Max Input Level: +1.5dBu
• Gain Range: 55dB

• Line Input 1:
• Line Input 1: (balanced ¼" [6.35mm] TRS) 20Hz – 20kHz (+0.05dB)
• Signal-to-Noise Ratio: 101dB (1kHz, +4dBu, A-weighted)
• THD+N: 0.003
• Max Input Level: 16dBu
• Gain Range: 55dB

• Instrument Input 2:
• Inst Input 2: (unbalanced ¼" [6.35mm] TS) 20Hz – 20kHz (+0.05dB)
• Dynamic Range: 100dB (A-weighted)
• Signal-to-Noise Ratio: 102dB (+ 4dBu, A-weighted)
• THD+N: 0.004
• Max Input Level: 6dBu
• Input Impedance: 1MΩ
• Gain Range: 24dB

• Main output:
• Frequency Response: 20Hz – 20kHz (+0.06dB)
• Dynamic Range / Signal-to-Noise Ratio: 102dB (A-weighted)
• THD+N: 0.005
• Max Output Level: +7dBu (1kHz, -1dBFS)

• General:
• Power: USB-bus-powered
• Dimensions (width x depth x height): 6.0” x 2.8” x 7.8” / 15.2cm x 7.1cm x 19.8cm
• Weight: 2.0 lbs. / 0.9kg

• NOVA Black Microphone:
• Type: Back Electret condenser microphone
• Element: 18mm pure aluminium diaphragm capsule
• Polar: Pattern Cardioid
• Frequency Response: 20Hz– 20kHz
• Sensitivity: -38dB (0dB = 1V/Pa @ 1kHz)
• Rated Impedance: 200Ω
• Maximum SPL: 136dB
• Phantom Power Required: +48V
• S/N Ratio: 77dB
• Current Consumption: 3mA

• HDH40 Headphones:
• Acoustic Design: Dynamic, Closed
• Driver: 40mm, neodymium
• Frequency Response: 15Hz – 22kHz
• Sensitivity: 95dB ±3dB
• Rated Impedance: 32Ω
• Earpad: Leatherette
• Cable Length: 9.8ft. / 3m
