Description

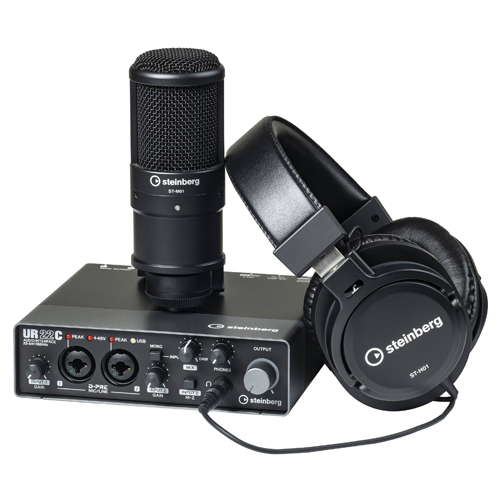

The Steinberg UR22C RP Recording Pack bundles the company's UR22C interface with a Steinberg ST-M01 Studio Condenser Microphone, and a pair of Steinberg ST-H01 Headphones. The interface offers 32-bit converters for a wide dynamic range, and records at sample rates of up to 192 kHz for capturing detailed sonic nuances. Use the microphone for recording your voice and the headphones for monitoring while recording or mixing. Whether you are recording yourself at the home studio or want to track high-quality audio on the road, the UR22C Recording Pack will come in handy for anyone who wishes to record music

Features

UR22C Interface

The interface offers two combo XLR-1/4" inputs, one of which can accept Hi-Z instruments, so you can record your basses and guitars direct, with fine degrees of resolution. Connect your monitors (available separately) via two 1/4" TRS jacks in the back of the unit, or make use of the 1/4" headphone output on the front panel to monitor privately. While you're recording, make use of the Mix knob to ensure that you hear your sound free of latency. Connect your favorite MIDI devices over the 5-pin DIN MIDI I/O jacks.

The interface can communicate over a USB GEN 3.1 connection for seamless integration with Mac and Windows computers. The port is also backwards compatible for USB 2.0. Even iOS devices running iOS 10 or later are supported, so you can record straight to your iPad.



If broadcasting DJ sets, lessons, or twitch streams with high resolution is something that piques your fancy, you'll be excited for the Loopback function. This merges your recording channels with playback audio from your DAW, so you can broadcast it all at once.



Multiple effects are included, such as REV-X reverb and guitar amplifier emulations. For home recording and production, Cubasis LE and Cubase AI are included, as is a software, zero-latency monitoring matrix called dspMixFx. The interface is powered over USB, though you can use a separately available 5V DC adapter.



ST-M01 Studio Condenser Microphone

The included ST-M01 studio condenser microphone offers a high-quality sound with a clean, smooth response, high sensitivity, and wide frequency response. This makes it ideal for recording every nuance of your desired audio source, whether you are recording vocals, interviews, acoustic guitar, or any other instrument. Even when making field recordings, the ST-M01 captures every detail of the sound.

The ST-H01 Monitor Headphones

The ST-H01 headphones included in the UR22C Recording Pack provide an accurate, sonically neutral listening experience. They are ideal for monitoring during recording and when doing your final mix. The closed-back design means low bleed levels into the microphone during vocal recording, which makes the can suitable for singers recording their own vocals.

 Specifications

Form Factor        Tabletop

Display     None

Channels of I/O   Analog:

2 Input / 2 Output

Max Sample Rate/Resolution    192 kHz / 32-Bit

Number of Mic Preamps 2

Connectivity

Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input

2 x 1/4" TRS Balanced Monitor Output

1 x 1/4" TRS Unbalanced Headphone Output

Phantom Power   +48 V (Selectable on Individual Inputs)

Digital Audio I/O  None

Host Connection / USB   1 x USB Type-C (USB 3.0 / 3.1 Gen 1)

MIDI I/O   1 x DIN 5-Pin Input

1 x DIN 5-Pin Output

Performance

Frequency Response      Mic Inputs:

20 Hz to 22 kHz /-0.3

Outputs:

20 Hz to 22 kHz /-0.2

Gain/Trim Range Mic Inputs:

+6 dB to +60 dB

Hi-Z Inputs:

+0 dB +54 dB

Line Inputs:

-10 dB to +44 dB

Max Input Level  Mic Inputs:

+6 dBu (Balanced)

Hi-Z Inputs:

+9 dBV (Unbalanced)

Line Inputs:

+22 dBu (Balanced)

Max Output Level Monitor Outputs:

+12 dBu (Balanced)

Headphone Output Power         15 mW per Channel

Impedance         Mic Inputs:

4 Kilohms (Balanced)

Hi-Z Inputs:

1 Megohms (Unbalanced)

Line Inputs:

18.5 Kilohms (Balanced)

Outputs:

150 Ohms (Balanced)

Headphone Outputs:

40 Ohms (Unbalanced)

Dynamic Range   Inputs:

102 dB

THD+N    Mic Inputs:

0.003%

Monitor Outputs:

0.0015%

Digital Audio

Sample Rates      Up to 192 kHz

Bit Depths Up to 32-Bit

Compatibility

OS Compatibility Windows 7 / 8.1 / 10

macOS 10.12 or Later

iOS 10 or Later

Processor Requirement  Mac:

2 GHz Intel Core i3

PC:

2 GHz Intel Core i3

PC:

2 GHz AMD

RAM Requirements        2 GB

Storage Requirements   1200 MB

Minimum Display Resolution     1280 x 800

Internet Connection       Required for Registration, Software/Driver Download

Power

Power Requirements      AC/DC Power Adapter (Not Included), USB Bus Power

Physical

Operating Temperature  32 to 104°F / 0 to 40°C

Dimensions        62.6 x 62.6 x 18.5" / 159 x 159 x 47 cm

Weight     2.2 lb / 1.0 kg

Packaging Info

Package Weight  6.45 lb

Box Dimensions (LxWxH)         19.5 x 10.1 x 6"
