Description

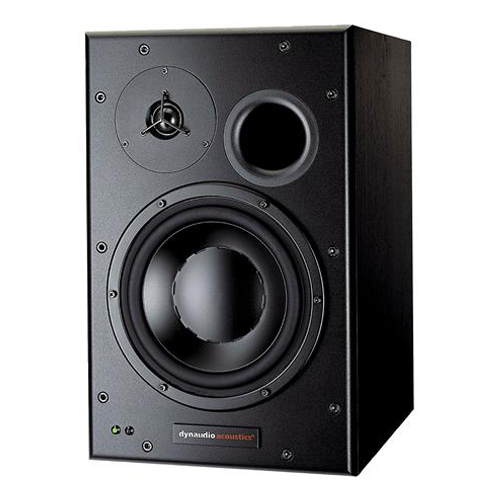

• The Dynaudio nearfield experience. The BM15A is a relatively large 2-way active system comprising of a large 240mm (10") woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.

Features

• Active nearfield monitor with 10" woofer and 1.1" silk dome tweeter
• Frequency response 40Hz - 22kHz (+/- 3 dB)
• Maximum SPL at 1 meter, pair (IEC Long Term) - 124 dB RMS
• Maximum SPL at 2 meters, 5.1 (IEC Long Term) - 125.5 dB RMS
• Amplifier power - Tweeter: 100 W / Woofer: 200 W
• Bass reflex cabinet with radius edges on front baffle
• Esotec tweeter with soft dome, rear chamber, magnetic fluid cooled
• One-piece molded polypropylene cone woofer with 4" pure aluminum wire voice coil
• 17.9" h x 15.2" w x 11.4" d

Specifications

• Powered:  Yes
• Power Configuration: Bi-amped
• LF Driver Size:   10"
• LF Driver Type:   Molded Polypropylene Cone
• HF Driver Size:   1.1"
• HF Driver Type:  Soft Dome
• LF Driver Power Amp:  200W
• HF Driver Power Amp:  100W
• Total Power:  300W
• Frequency Range:  40Hz-22kHz
• Frequency Response: 30Hz-21kHz
• Crossover Frequency:  1800 Hz, 30 dB/Oct
• Maximum Peak SPL:  124dB
• Input Types:  1 x XLR
• Enclosure Type:  Ported
• Height:  17.9"
• Width: 11.4"
• Depth: 15.2"
• Weight:  41 lbs.
• Manufacturer Part Number:  949658
