Description

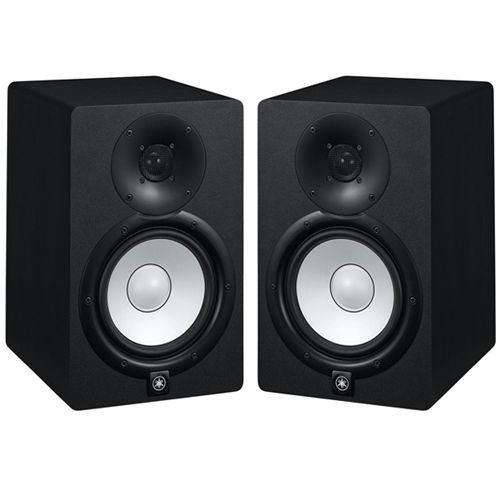

• The Yamaha HS7 combines a wide range of premium-grade components including larger-than-normal magnets for optimal audio fidelity. The advanced magnetic field design ensures extreme accuracy when it comes to sound reproduction, paramount for mixing and mastering purposes. Its 2-way bi-amplified design is comprised of a 7-inch cone woofer and a 1-inch dome tweeter.

• The two components are powered separately by dedicated amplifiers for maximum efficiency. The woofer is driven a 60W amplifier, with the tweeter driven by a 35W amplifier. This ensures optimal audio performance even at higher sound levels.

Features

• Highly efficient Transducers
• High performance amp unit
• Low resonance enclosure design
• Cutting edge noise reduction technology

Specifications

• System Type: 2-Way Bi-Amp Powered Studio Monitor
• Frequency Response (-10dB): 43Hz - 30kHz
• Crossover Frequency: 2kHz
• Transducers: LF 6.5" Cone, HF 1" Dome
• Output Power: 95W (60W LF + 35W HF)
• Input Sensitivity / Impedance: -10dBu / 10k Ohms
• Input Connectors (Parallel): XLR3-31 type (Balanced), PHONE (Balanced)

• Controls:
• LEVEL Control (+4dB / Centre Click)
• HIGH TRIM Switch (+/-2dB at HF)
• ROOM CONTROL Switch (0/-2/-4dB under 500Hz)
• Power Indicator: White LED
• Power Consumption: 55W
• Enclosure: Bass-Reflex Type, MDF
