Description

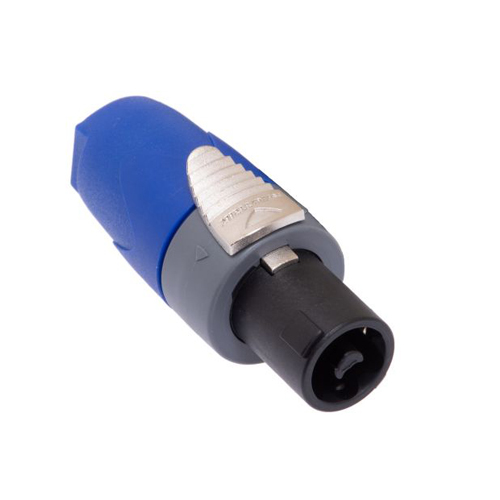

• The NL2FX from Neutrik is a two pole female speakON loudspeaker connector for cables that are 6 to 10mm in diameter. This industry-standard loudspeaker connector offers robust cable connection with a reliable locking system.

Features

• Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
• Only 3 parts, easy to assemble
• High impact materials – long-lasting and reliable
• Easy and extremely precise locking system "Quick Lock"
• 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
• Improved grip on latch
• Mates with 4-pole chassis connector as well and makes contact with +1/-1

Specifications

• Electrical

• Contact resistance
• < 2 mΩ (after lifetime)
• Dielectric strength
• 4 kVdc (peak)
• Insulation resistance

Ø  1 GΩ (after dampheat)

• Rated current per contact
• 40 A rms continuous
• Rated current per contact
• 50 A audiosignal, duty cycle 50 %
• Rated voltage
• 250 V ac
• Attention
• speakON is not to be used as an AC mains or power supply connector!
• Mechanical

• Cable O.D.
• 6 - 10 mm
• Cable retention
• ≥ 220 N (subject to cable O.D. and material)
• Lifetime

Ø  5000 mating cycles

• Wiresize
• 1.5 - 4 mm²
• Wiresize
• 16 - 12 AWG
• Wiring
• screw type terminals or soldering
• Locking device
• Quick Lock (latch)
• Material

• Contact plating
• 4 µm Ag
• Contacts
• Brass (CuZn39Pb3)
• Insert
• PBTP 20 % GR
• Locking element
• Zinc diecast (ZnAl4Cu1)
• Shell
• PBTP 20 % GR
• Strain relief
• Polyacetal (POM)
• Environmental

• Flammability
• UL 94 HB
• Solderability
• Complies with IEC 68-2-20
• Temperature range
• -30 °C to +80 °C
