Description

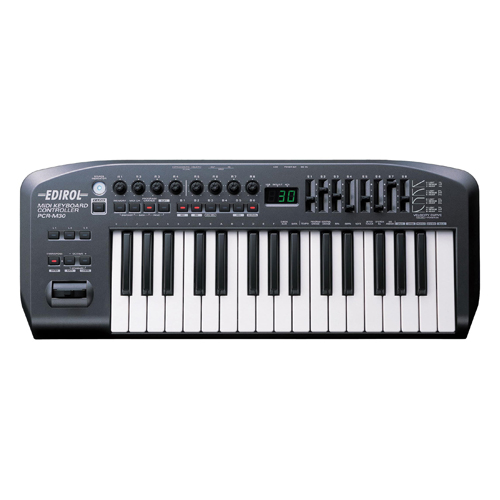

• The Edirol PCR-30 keyboard — the most advanced 32-key MIDI keyboard controller available. Never before has there been a better compact keyboard for use with popular sequencers and software synthesizers. The PCR-30 takes MIDI control to a new level with unprecedented versatility.

Features

• 32 full-sized, velocity sensitive keys
• 8 assignable rotary knobs (cut off, resonance, pan, tempo, etc.)
• 8 assignable faders (volume, EFX send, etc.)
• 9 assignable buttons (program change, track mute, start, stop, etc.)
• 1 sustain pedal connection
• 1 expression pedal connection
• MIDI in & MIDI out Pitch & Modulation controls (Newly redesigned to be linearly controlled for more accurate performance)
• 1 Preset Memory & 15 User Memory locations USB Bus powered or AC adaptor
• Template sheets for controls
• The PCR-30 can control a number of parameters not accessible from other controller keyboards at this price point; such as RPN, NRPN, SysEx.

Specifications

• Keyboard
• 32 Velocity Sensitive Keys
• Controller
• Memory Button
• MIDI Channel Button
• Program Change Button
• Edit Button
• V-LINK Button
• Octave Shift Button (+/-)
• Transpose Button
• Assignable Button (B1--6, L1--3)
• Bender/Modulation Lever
• Assignable Rotary Volume (R1--8)
• Assignable Slider (S1--8)
• Assignable Pedal (P1--2)
• Display
• 7 segments, 3 characters (LED)
• Power Indicator
• Connectors
• Hold Pedal Jack
• Expression Pedal Jack
• MIDI Jacks (IN/OUT)
• USB Jack
• DC IN Jack
• Rear Panel
• Power Switch (USB BUS/OFF/DC IN)
• Power Supply
• DC 9 V (AC Adapter) or USB Bus Powered
• Current Draw
• 300 mA (AC Adapter)
• 300 mA (USB Bus Power)
• Dimensions
• 600 (W) x 232 (D) x 86.4 (H) mm
• 23-5/8 (W) x 9-3/16 (D) x 3-7/16 (H) in.
• Weight
• 2.4 kg / 5 lbs. 5 oz (excluding AC adapter)
• Accessories
• AC Adapter (ACP Series)
• CD-ROM
• USB Cable
• Owner's Manual
• Template Sheets (GM2/BLANK)
• Options
• Pedal Switch: DP-2/6
• Expression Pedal: EV-5/7
• System Requirements
• Macintosh
• Operating System: Mac OS 8.5, 8.6, 9.x, and OS X
• Computer: USB ready Apple Macintosh
• CPU/clock: PowerPC G3/233 MHz or higher
• Memory (RAM): 64 MB or more
• OMS 2.3.3 or later. FreeMIDI 1.35 or later*
• For Mac OS 8.5, 8.6, 9.x. Plug and play on Mac OS X.
