Description

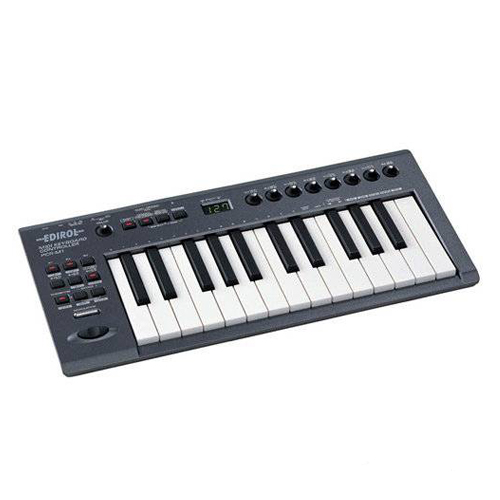

• The PCR-M1 uses Edirol & Roland's S.L.I.M. technology, providing a remarkably playable action with a very short throw and very little side-to-side play in the keys. It may be small, but this feature-packed device is no toy! The PCR-M1 measures a mere 1-3/16" thick and weighs just 2lbs.

Features

• 25 standard-width velocity-sensitive keys
• S.L.I.M. keyboard
• Thin (28mm/1-3/16"), light (1.5kg/2lbs. 11oz) body
• 27 assignable controllers: 8 knobs, 6 buttons, and 2 pedal ports
• Separate pitch bender & modulation control
• 16 control-map memory locations
• MIDI in/out ports
• Expression and Sustain pedal ports — (with included 1/4" adapters)
• 3-way power supply: USB/battery/AC adaptor
• Downloadable memory sets
• PCR Editor software
• Gig bag
• V-LINK compatible

Specifications

• KEYBOARD
• S.L.I.M. Keyboard: 25 Keys (with velocity)

• CONNECTORS
• USB connector: Type B
• MIDI IN/OUT
• Pedal: Expression, Sustain

• CONTROLLERS
• Top Panel
• Rotary Encoder
• Assignable Rotary Volume Knobs (R1--8)
• Assignable Buttons (B1--6)
• Mode Switch x 4
• Octave Shift Switch (UP / DOWN)
• Transpose Switch
• Pitch Bend Switch
• Modulation Switch
• Rear Panel
• Power Switch (DC / OFF / USB)
• DC IN (200 mA)

• OTHERS
• Display
• 7 segments, 3 characters (LED)
• Power Supply
• USB
• AC Adaptor: PSA Type (optional)
• Battery (4 x AAA Type)
• Current Draw
• 400 mA
• Accessories
• CD-ROM
• USB Cable
• Owner’s Manual
• Template Sheets
• PEDAL Conversion Cable x 2
• Gig Bag
• Options
• AC Adaptor (Roland PSA series)
• Pedal Switch: DP-2/6
• Expression Pedal: EV-5

• SIZE AND WEIGHT
• Width
• 450 mm
• 17-3/4 inches
• Depth
• 220 mm
• 8-11/16 inches
• Height
• 28 mm
• 1-1/8 inches
• Weight
• 1.5 kg
• 3 lbs. 5 oz.
