Description

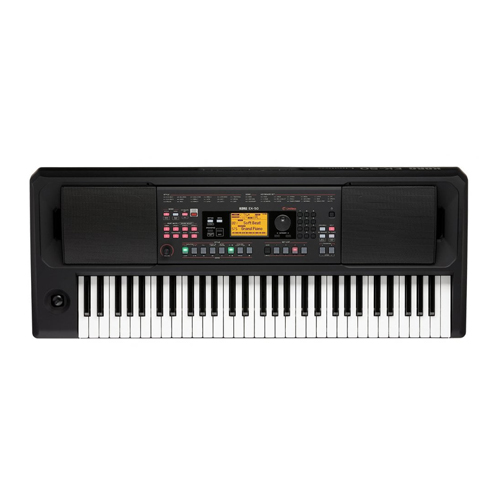

• The EK-50 is Korg’s first affordable, full-size 61-key arranger; and it packs over 700 sounds, 280 auto-accompaniment styles, and easy operation — plus advanced recording and playback features, a great-sounding stereo speaker system, and LED buttons for effortless navigation.

Features

• Stereo PCM sound generator
• 64-voice maximum polyphony
• 700+ sounds, 41 drum kits (including GM-compatible sound sets)
• 280+ styles, each containing 2 intros, 4 variations, 2 fills, 1 count-in, and 2 endings
• More than 16 music styles
• More than 170 keyboard sets
• 18 demo songs
• Set list mode, 10 banks × 4
• Easy layout including LED buttons to clearly indicate what is selected
• Bright, easy-to-read LCD display
• Speaker system: 10-watt x 10-watt, 4.72" double-cone speakers × 2 (bass reflex box-type); speaker EQ: 8 types
• USB/MIDI, device and host connectivity
• Audio player: MP3, WAV (44.1kHz)
• Compatible with all Pa50 Styles
• 4 stereo multi-effects processors (2 style, 2 sound; 148 effects variations)
• Touch control: soft (light), medium (standard), hard (heavier), fixed
• 34 effects types (148 variations)
• Effects (accompaniment part): 2 stereo digital multi-effects
• Effects (keyboard part): 2 stereo digital multi-effects
• Onboard sequencer with real-time recording, maximum 999 songs; supports song play and standard MIDI files
• 11 scale types (including user scale)
• Metronome: tempo, beat, volume
• Tempo: 30–240
• Key transpose: C (-12) to C (0) to C (+12)
• Tuning: 427.5–452.9Hz
• Foot controller jack: 1/4" phone jack
• Audio in jack: 3.5mm stereo mini phone jack
• Output: L MONO, R 1/4" phone jacks
• Headphone jack: 3.5mm stereo mini phone jack
• USB A port: to device port for connecting USB flash memory and controllers
• USB B port: to host port for connecting to personal computers
• MIDI over USB
• Custom LCD with backlighting
• Power supply: AC adapter (included) or AA batteries x 8 (sold separately)
• Included items: AC adapter, sheet music stand

Specifications

• Number of Keys:      61
• Type of Keys: Full Size, Touch Control (light, standard, heavy, fixed)
• Velocity Sensitive:    Yes
• Other Controllers:     Joystick (pitch bend)
• Polyphony:     64 Notes
• Presets:        Over 702 sounds, 41 drum kits, 170 keyboard sets
• Number of Effects:   34
• Formats:       MP3, WAV (44.1kHz)
• Sequencer:    999 songs, 12 tracks (4 parts + 8 accompaniment parts), SMF playback, SMF realtime recording
• Audio Playback:        MP3, WAV
• Audio Inputs: 1 x 1/8" (aux in)
• Audio Outputs:         2 x 1/4" (L/R out)
• USB:   1 x Type A, 1 x Type B
• MIDI I/O:      USB
• Headphones:  1 x 1/8"
• Pedal Inputs:  1 x 1/4"
• Built-in Speakers:     2 x 10W 4.7" speakers
• Power Supply:          12V DC power supply (included) / 8 x AA batteries (Alkaline, NiMH)
• Height:          5.2"
• Width: 39.13"
• Depth: 15.43"
• Weight:         16.5 lbs.
• Manufacturer Part Number:  EK-50
