Description

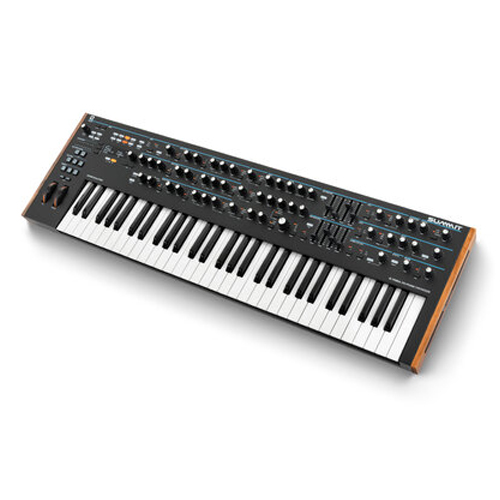

• Summit is a 2-part, 16-voice synthesizer with three oscillators per voice, aimed at the professional or semiprofessional musician seeking a powerful, inspiring 61-note keyboard synth for onstage and studio deployment. Summit puts the power of two Peaks right at your fingertips, letting you split or layer two completely independent patches across the keyboard, or switch between them on the fly. Summit also expands on Peak’s layout, with many additional controls and functions accessible on the front panel — including FM routing, LFOs 3 and 4, complete arpeggiator parameters, and more — plus pitch and mod wheels. Summit also features numerous new filter options and an audio input for processing external sources through its reverb, chorus, and delay FX.

Features

• Premium 5-octave semi-weighted keybed with velocity sensitivity and aftertouch
• 2-part multitimbral 16-voice polyphonic synthesizer
• Hybrid architecture: "Digital where it counts, Analog where it matters"
• Multitimbral engine for splitting, stacking, and switching between 2 simultaneous patches
• 3 NCO New Oxford Oscillators per voice, enabling subtractive, wavetable or FM synthesis
• Dual analog filters, analog VCAs, and 3 stages of analog distortion per voice
• Per-voice analog multimode 12/24dB filters with Dual mode
• Per-part arpeggiator and effects (distortion, chorus, delay, and reverb)
• Powerful new Wavetable Editor unleashes the full power of the oscillators
• Stereo audio in routable to onboard effects and aux outputs
• Includes Ableton Live Lite DAW software and access to the Novation Sound Collective
• USB-MIDI class-compliant
• 3-year warranty
• Weight: 23.46 pounds

Specifications

• Type:  Keyboard Synthesizer
• Sound Engine:          Subtractive, FM and Wavetable Synthesis
• Analog/Digital:          Hybrid
• Number of Keys:      61
• Type of Keys: Semi-weighted Premium Keybed, Velocity-sensitive
• Aftertouch:    Yes
• Other Controllers:     Pitchbend, Mod wheel
• Polyphony:     16 Notes
• Oscillators:     3 x Digital New Oxford Oscillators (sine, triangle, sawtooth, square, pulse)
• LFO:   2 x LFO
• Filter:  Analog State Variable OTA 12/24dB Slope Filter; Lowpass, Bandpass, Highpass, Dual Filter
• Envelope Generator: Amp Envelope ADSR, Mod Envelope ADSR, Loop Switch
• Effects Types: Analog Distortion, Reverb, Chorus, Delay
• Arpeggiator:   Yes
• Audio Inputs: 2 x 1/4" (L/mono,R)
• Audio Outputs:         2 x 1/4" (main), 2 x 1/4" (aux)
• Headphones:  1 x 1/4"
• USB:   1 x Type B
• MIDI I/O:      In/Out/Thru/USB
• Pedal Inputs:  2 x 1/4" (expression 1/2)
• Other I/O:     1 x 1/8" (CV modulation in)
• Software:      Ableton Live Lite, Novation Sound Collective access
• Power Source:         Standard IEC AC cable
• Height:          3.62"
• Width: 39.31"
• Depth: 11.95"
• Weight:         23.4 lbs.
• Manufacturer Part Number:  AMS-SUMMIT
