Description

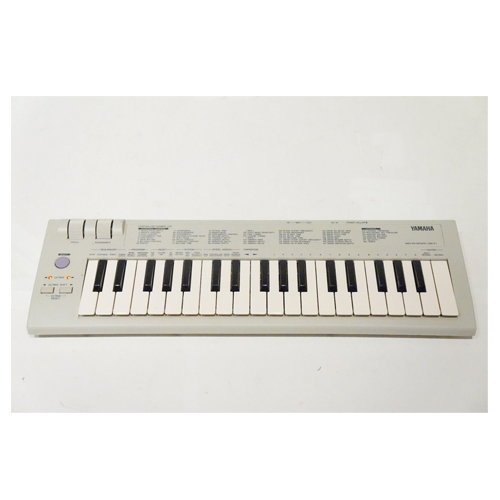

• The CBX-K1 is a sophisticated, yet compact MIDI keyboard controller, for use with computers and MIDI music systems. It allows you to play connected tone generators and rhythm machines, and enter performance data to sequencers and computers.

Features

• 37 mini keys with inital touch
• Remote control functions
• MIDI merge, octave shift, transpose
• MIDI channel fixed functions MIDI in/out
• Supports all XG functions
• Battery powered

Specifications

• Keyboard
• 37 mini key keyboard (C2-C5), velocity responsive

• Functions
• Basic: Octave Shift (+/- 4 octaves), Pitch Bend, Assignable
• control, MIDI Merge (MIDI IN)
• MIDI Data: Sequencer control, MIDI clock, Bank Select,
• Program Change, GM System On, XG System On,
• GM-B Reset, Control Change, All Sound Off, Reset All
• Controllers, and others
• Assignable Parameters: Transpose (+/- 12 semitones), MIDI
• Transmit Channel, Fixed Velocity, Touch Sensitivity,
• Device Number, Merge On/Off (each channel)

• Panel Controls and Indicators
• SHIFT button, OCTAVE SHIFT Q/W buttons and lamps,
• PITCH Wheel, ASSIGNABLE Wheel, POWER ON/OFF switch

• Input/Output Terminals
• MIDI IN, MIDI OUT, DC IN

• Power Supply
• Yamaha PA-3 or PA-1B AC Power Adaptor (sold separately),
• or six “AA” size, SUM-3, R-6 or equivalent batteries (sold
• separately).

• Power Consumption
• Approximately 35 mA (with battery use); approximately 2 W
• (with AC adaptor use).

• Dimensions (W x D x H)
• 509 x 155 x 55 mm (20-1/16” x 6-1/8” x 2-3/16”)

• Weight (without batteries)
• 1.3 kg (2 lbs., 14 oz.)
