  • Description

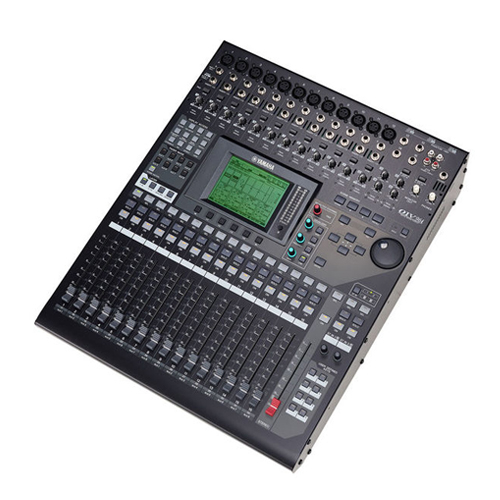

    • The Yamaha 01V96i updates their iconic digital recording console with 16 channels of bi-directional USB audio streaming at an impressive 96kHz. With multi-track recording now de rigueur during live shows, Yamaha once again ups the ante by making recording and playback faster and easier, while supplying full integration with major ASIO and Core Audio DAWs - with just a single connection. Onboard, you get Yamaha's lauded Virtual Circuitry Modeling technology, giving you warm "analog" effects that are modelled on the actual circuitry of the original units. Bundled with Steinberg's Cubase AI, Yamaha's 01V96i is all you need.
    Features
    • 40-channel digital mixer with 12 high-performance mic preamps
    • 16 channels of bi-directional USB audio streaming
    • Up to 40-channel simultaneous mixing
    • Expandable with ADAT, AES/EBU, TDIF, or analog Mini-YGDAI cards
    • Built-in ADAT I/O
    • 01V96i Editor software lets you make settings for the 01V96i console from your computer
    • Surround panning capability
    • Balanced stereo main and monitor outputs plus 2-channel coax digital I/O
    • Word clock I/O
    • MIDI I/O
    • Integrated DAW control (bundled with Steinberg's Cubase AI)

    Specifications

    • Type:Digital
    • Channels:40
    • Inputs - Mic Preamps:12 x XLR
    • Phantom Power:12 x Channels
    • Inputs - Line:16 x 1/4" (CH 1-16), 2 x RCA
    • Outputs - Main:2 x XLR
    • Outputs - Other:2 x RCA, 2 x 1/4" (Monitor), 4 x 1/4" (Omni)
    • Inputs - Digital:1 x ADAT (Optical), 1 x S/PDIF (Optical)
    • Outputs - Digital:1 x ADAT (Optical), 1 x S/PDIF (Optical)
    • Aux Sends:8 x Aux Sends
    • Busses/Groups:8 x Group Bus
    • Channel Inserts:Yes (CH 1-12)
    • Data I/O:Word Clock In/Out (BNC), MIDI In/Out/Thru
    • USB:1 x Type B
    • Computer Connectivity:USB (16 x 16)
    • I/O Expansion Slots:1 x Expansion SLot
    • Headphones:1 x 1/4"
    • Faders:17 x 100mm (Motorized)
    • EQ Bands:4-band Parametric
    • Effects:Yes
    • DAW Control:Yes
    • Rackmountable:Yes
    • Height:5.9"
    • Depth:21.25"
    • Width:16.92"
    • Weight:33.6 lbs.
    • Manufacturer Part Number:01V96i

    Write a review

    Note: HTML is not translated!
        Bad           Good

    Yamaha 01V96i 40-channel Digital Mixing Console - (Lahore-Pakistan)

    • Product Code: YAMAHA-01V96I-40-CHANNEL-DIGITAL-MIXING-CONSOLE
    • $0.00
