  • Description

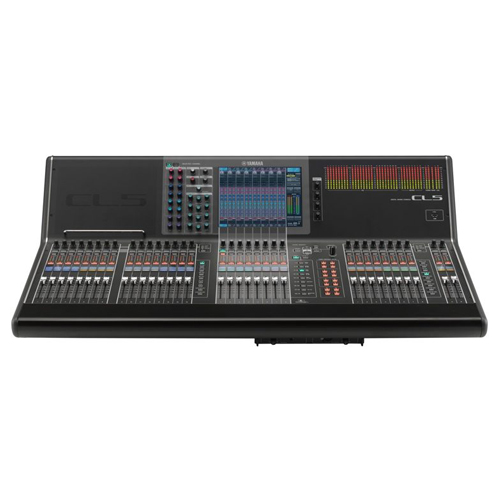

    • The Yamaha CL5 digital mixer delivers outstanding sound quality and impressive show control. Connect Rio series stage boxes (not included) for up to 72 mono and eight stereo mixable channels, with 32 channel faders and two master faders for control. Built-in Virtual Circuitry Modeling created by Rupert Neve Designs gives you access to Neve Portico 5033 EQ and Portico 5043 compressor/limiter processors, plus other spot-on emulations of classic hardware processors. And built-in Dan Dugan automatic mixing makes it easy for any operator to optimize microphones and effectively fight feedback. In short, world-class sound is easily attainable with the Yamaha CL5 digital mixer.
    Features
    • 32-fader digital mixing console
    • 72 mono and 8 stereo mixable channels
    • Connect up to 8 Rio series stages boxes (sold separately) for I/O
    • Touchscreen display for intuitive control over the Centralogic user interface
    • Built-in Dante interface plus 3 MY-card slots for digital expansion
    • Control port for computer control (wired or Wi-Fi)
    • Portico 5033 EQ and Portico 5043 compressor/limiter processors designed by Rupert Neve Designs
    • Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
    • Nuendo Live and Dante Virtual Soundcard licenses included

    Specifications

    • Type: Digital
    • Channels: 32 + 2 master faders, 72 mono channel mixing plus 8 stereo channels
    • Inputs - Mic Preamps: 8 x XLR
    • Phantom Power: 8
    • Outputs - Other: 8 x XLR (line out)
    • Inputs - Digital: 2 x RJ-45 (Dante)
    • Outputs - Digital: 2 x RJ-45 (Dante), 1 x XLR (AES/EBU)
    • Busses/Groups: 16 send Mix bus, 8 send Matrix bus
    • Channel Inserts: Internal
    • Talkback: 1 x XLR
    • MIDI I/O: In/Out
    • Data I/O: 1 x D-Sub GPI (15-pin female), 1 x Ethernet
    • USB: 1 x USB Type A
    • Computer Connectivity: Ethernet
    • I/O Expansion Slots: 3 x Card slots available (DSP cards or mini-YGDAI cards)
    • Headphones: 1 x 1/4"
    • Word Clock: In/Out
    • Faders: 26 x 100mm faders
    • EQ Bands: 4-band parametric channel EQ, 31-band Graphic EQ, 15-band flex EQ,
    • Effects: Reverbs, Delays, Modulation, Premium Rack compressor modeling and more
    • DAW Control: Yes (via Dante)
    • Height: 11.75"
    • Depth: 26.25"
    • Width: 41.5"
    • Weight: 79.4 lbs.
    • Manufacturer Part Number: CL5
