Description

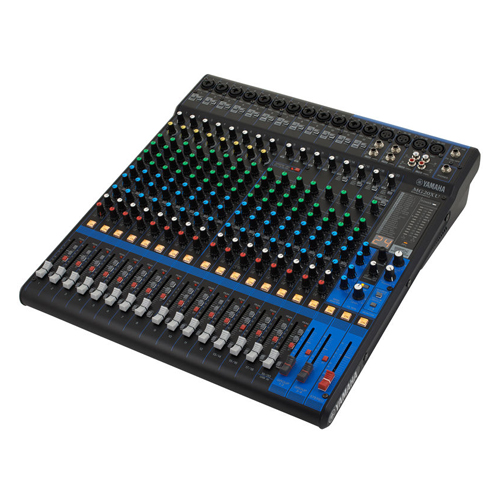

• The Yamaha MG20XU analog mixer is well-suited for portable rigs or permanent installations, with its rich features and outstanding sound quality. The MG20XU's quality op-amp ensures that your mix sounds transparent and articulate. The MG20XU's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG20XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG20XU is ready to work for you!

Features

• D-PRE mic preamps deliver clean, transparent, and natural sound
• 3-band EQ on all mono channels for sound-shaping
• 1-knob compressors provide straightforward dynamics control
• Class-compliant USB 2.0 for recording and playback with computers and tablets
• SPX effect processors provide you with a comprehensive suite of 24 effects
• Pad switch on mono inputs for managing loud sources
• Metal chassis for durability

Specifications

• 20 Channels
• 16 Microphone inputs (XLR/jack) with +48V phantom power
• Channels 1-8 with built-in compressor
• 3 Band EQ with sweepable mids
• High-Pass filter and 26 dB pad switch
• SPX Effect processor with 24 programs
• 4 Stereo inputs (jack) with 3-band EQ
• XLR output
• 2 Group BUS outputs
• 4 AUX sends on each channel
• USB with 2 stereo inputs/outputs (compatible with iPad version 2 or higher, Camera Connection Kit required)
• Dimensions: 444 x 130 x 500 mm
• Weight: 7.1 kg
• Includes a rack mount kit and Cubase AI DAW software as download
