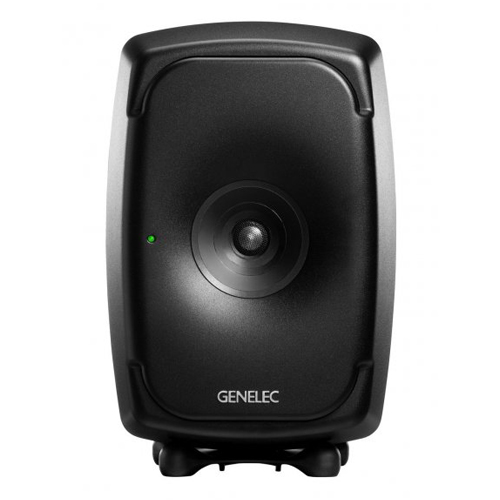

    • For extraordinary imaging, extended frequency response, and fatigue-free listening at near- to midfield distances, you can't beat point-source monitoring. Genelec has point source nailed with their 8331 SAM. Part of Genelec's "The Ones" series, this revolutionary 3-way studio monitor combines Genelec's Acoustically Concealed Woofer (ACW) technology with other innovative technologies to deliver an impressively linear payload over a remarkably wide bandwidth, resulting in phenomenal imaging and clarity.
    • Genelec's Smart Active Monitor (SAM) technology, which optimizes level, timing, and equalization of room response anomalies. The result is an amazingly tight, accurate sound with enormous dynamic range and unprecedented frequency response, regardless of where you choose to work. On top of that, these monitors perform optimally in both horizontal and vertical positions.
    Features
    • Smart Active Monitor (SAM) provides remarkably accurate monitoring
    • Minimum Diffraction Enclosure (MDE) delivers focused near- and midfield sound
    • Minimum Diffraction Coaxial (MDC) driver provides superior imaging
    • Directivity Control Waveguide (DCW) for linear on- and off-axis response
    • Dual Acoustically Concealed Woofers (ACW) extend directivity control to bass frequencies
    • Optimum performance in both horizontal and vertical position

    Specifications

    • Powered:   Yes
    • Power Configuration: Tri-amped
    • LF Driver Size:  2 x (5.12" x 3.62") concealed woofers
    • MF Driver Size:  1 x 3.5"
    • MF Driver Type:  Diffraction Coaxial Driver
    • HF Driver Size:   1 x 0.75" Coaxial tweeter
    • HF Driver Type:  Diffraction Coaxial Driver
    • LF Driver Power Amp:   72W
    • MF Driver Power Amp:  36W
    • HF Driver Power Amp:   36W
    • Total Power:  144W
    • Frequency Response: 58Hz-20kHz (±1.5 dB)
    • Maximum Peak SPL:  104 dB SPL @ 1m
    • Input Types:  1 x XLR (analog, AES/EBU)
    • Output Types:    1 x XLR (AES/EBU)
    • Other I/O:  2 x RJ45 (GLM network)
    • Features:   DIP switches (standalone EQ set up)
    • Enclosure Type:       Ported
    • Height:   11.25", 12" (with stand)
    • Width: 7.5"
    • Depth: 8.37"
    • Weight: 15 lbs

    Write a review

    Note: HTML is not translated!
        Bad           Good

    Genelec 8331 SAM 3-way Coaxial Powered Studio Monitor - (Lahore-Pakistan)

    • Product Code: GENELEC-8331-SAM-COAXIAL-POWERED-STUDIO-MONITOR
    • $0.00
