Description

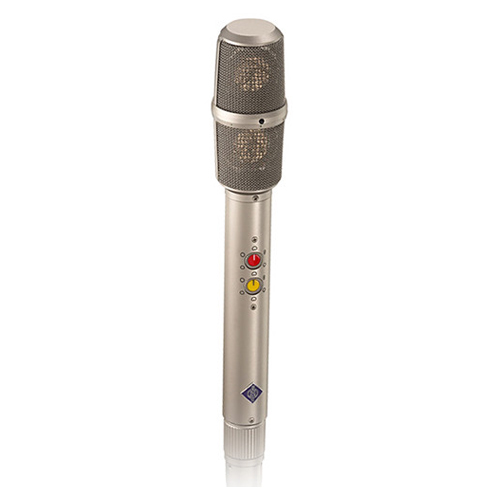

• The USM 69 i Variable Pattern Stereo Microphone is a dual capsule stereo microphone with two K67 multi-pattern capsules and independent amplifier stages operating independently from each other. The capsules are stacked and rotated at a 270 degree angle for M/S and X/Y style stereo capturing.

• Each capsule features individually switchable omnidirectional, cardioid, figure-8, hypercardioid and wide-angle cardioid polar patterns for the ultimate in flexible audio capturing. The USM 69 i features independent output stages allowing the capsules to function as individual mono microphones for audio backup capturing applications. The USM 69 i is a powerful stereo microphone for crucial studio recording of vocals and instruments.

Features

• Dual Capsule Stereo Design
• Dual Amplifier Stages
• Variable Stereo Patterns
• Customize Each Capsule Pattern
• Also Operates in Mono
• High-Quality Sound
• Low Noise Floor
• For Crucial Studio Vocals
• Nickel Finish

Specifications

• Transducer    Condenser Pressure Transducer x2
• Polar Pattern  Omnidirectional, wide-angle cardioid, cardioid, hypercardioid, figure-8
• Frequency Response 20Hz to 20kHz
• Maximum Input Sound Level          132dB, Equivalent SPL for THD 0.5%
• Power Requirements  48V Phantom Power +/- 4V
• Output Impedance    Rated Impedance: 150 ohms balanced
• Rated Load Impedance: 1000 ohms
• Output Connectors    Balanced XLR 5-pin
• Dimensions (LxDiameter)    1.18 x 1.88" (30 x 48mm)
• Weight 1.12 lbs (510g)
