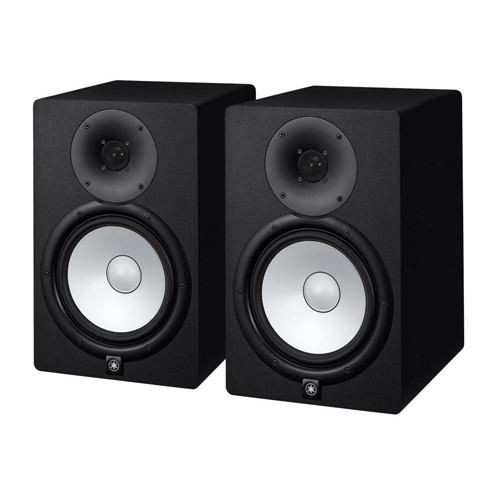

Yamaha HS8 Powered Studio Monitor

The Yamaha HS8 is a 2-way bass-reflex bi-amplified nearfield studio Monitor with 8″ cone woofer and 1″ dome tweeter. The Yamaha HS-Series have the acquired all inclusive blend interpretation inheritance and unmistakable white cones of the business regarded NS-10’s, intended to convey your blends in with straightforward genuineness. Room control and recurrence reaction switches permit custom fitting of the screen’s reaction to give you exact execution in any condition.

 High-performance Speakers

The rich white-cone speakers utilized in the HS-arrangement screens convey standout sound execution that is additionally improved by a painstakingly designed mounting framework. An arrangement of screws and an exceptionally planned mounting ring dispenses with false vibration and reverberation, permitting the speaker to convey its full sonic potential. Another element that helps woofer execution is a magnet chosen to create exact, strong low-end reaction. The tweeter outlines utilize a propelled smooth-form plan that limits misfortunes so high-recurrence subtleties come through with noteworthy precision. The additional thickness of the tweeter outline likewise limits reverberation that can meddle with top of the line lucidity. The general outcome is exceptionally smooth, precise reaction all through the sound range.

Built-in Power and Bi-amplification

Controlled, bi-amplified Monitor speakers just make the most electrical and sonic sense, and that is the reason they have gotten the best option of sound experts the world over for close and mid-field checking applications. Notwithstanding the undeniable favorable position that you needn’t bother with independent force enhancers, the way that force and speakers are incorporated in one unit implies that the intensifiers can be totally coordinated to the qualities of the speaker units utilized so you get reliably unrivaled execution with any source in pretty much any listening condition. Bi-intensification implies that different force enhancers are utilized to drive the low-mid and high-recurrence speaker units, and this wipes out communication between the units just as the reaction and stage inconsistencies presented by uninvolved hybrid systems. Both speaker units can work at ideal execution levels for correspondingly high in general sonic quality.

Advanced Magnetic Circuit Design

One element of the HS-arrangement screens that you’ll hear however are not liable to see is the additional huge magnets. In mix with a progressed attractive circuit structure these magnets give an incredible, uniform, firmly controlled transition field that outcomes in outstandingly smooth reaction and dynamic ability over a more extensive recurrence go.

System Type  2-Way Bi-Amped Powered Studio Monitor

Frequency Response 38 Hz to 30 kHz

Crossover Frequency 2 kHz

Transducer    LF: 8″ (127 mm) Cone

HF: 1″ (25 mm) Dome

Output Power Total: 120W

LF: 75W

HF: 45W

Input Sensitivity       -10 dBu / 10 kΩ

Inputs 1x Balanced XLR3-31 Type

1x 1/4″ (6.35 mm) Balanced TRS

Controls        Level Control (+4 dB/Center Click)

EQ: High Trim Switch (+/- 2 dB @ HF)

Room Control Switch(0, -2, -4 dB under 500 Hz)

Indicators      1x Power On White LED

Power Consumption  60 W

Enclosure      Type: Bass-Reflex

Material: MDF

Dimensions (WxHxD) 9.8 x 15.4 x 13.1″ (250 x 390 x 334 mm)

Weight 22.5 lb (10.2 kg)

Packaging Info

Package Weight       28.8 lb

Box Dimensions (LxWxH)    21.0 x 16.2 x 14.3″
