Description

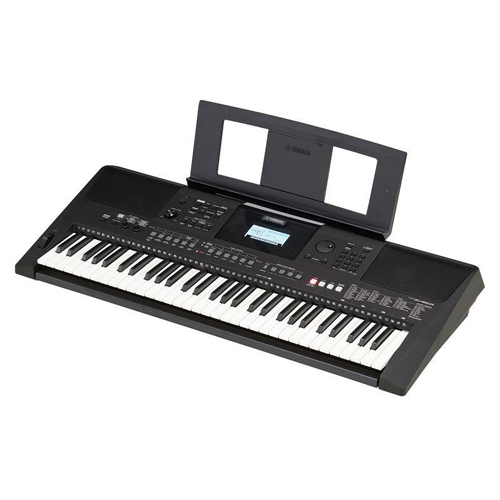

• The PSR-E463 61-Key Touch Response Portable Keyboard from Yamaha is an entry-level keyboard for performing various styles of music. It features on-board speakers and easy-to-use professional features such as assignable live control knobs, Quick Sampling, Groove Creator, and a USB audio recorder. The library of 758 instrument voices and 235 auto-accompaniment styles allow you to enjoy playing any musical genre.

Features

• 758 High-Quality Voices
• Quick Sampling Function
• USB Audio Recorder
• Built-In Bass Reflex Speakers
• Assignable Real-Time Control Knobs
• DSP Effects, Pitch Bend, and Arpeggio
• Audio and MIDI Capabilities
• USB to Device Terminal
• Includes Music Rest
• Runs on 6 x AA Batteries or AC Adapter

Specifications

• Digital Keyboard
• Keyboard 61 Keys, Synth Action
• Touch Response       3 Levels of Sensitivity, Plus Fixed
• Expression Controls 1 x Pitch Bend

• Sounds and Songs
• Number of Sound Presets    758
• Number of Song Presets      10 x User
• 30 x Factory
• Effects Chorus, EQ, Reverb
• Maximum Polyphony 48 Notes
• Performance Functions  Arpeggiator, Split/Layer, Temperament Adjustment, Transpose, Tuning Adjustment

• Auto-Accompaniment
• Number of Style Presets      235 x Factory
• 10 x User
• Number of Rhythm Presets 35
• Types  One Touch, Multi-Finger
• Practice Features      Lessons, Chord Dictionary, Metronome, Auto Power Off

• MIDI and Recording
• Supported MIDI Standards   GM, XGlite
• Standard MIDI File (SMF) Formats  Format 0, 1 (Record)
• MIDI Note Memory and Resolution  19,000 Notes
• Audio Recording Formats     WAV, 44.1 kHz / 16-Bit
• Max Audio Recording Time 80 Minutes per Song

• Connectivity
• I/O     1 x 1/8" / 3.5 mm TRS Aux Input
• 1 x 1/4" TRS Headphone Output
• Pedal Support 1 x 1/4" Sustain
• Data Port       1 x USB Type-B (Computer Transfer)
• 1 x USB Type-A (External Memory)

• Amplification and Speakers
• Amplifiers      2 x 6 W
• Round Speakers       2 x 4.7" / 11.9 cm

• Power
• AC/DC Power Adapter PA-150, 12 VDC (or Equivalent-Not Included)
• Power Consumption 8 W
• Battery Type 6 x AA

• Physical
• Display          LCD
• Dimensions 37.2 x 5.5 x 15.9" / 946 x 139 x 404 mm
• Weight 14.6 lb / 6.6 kg
