Description

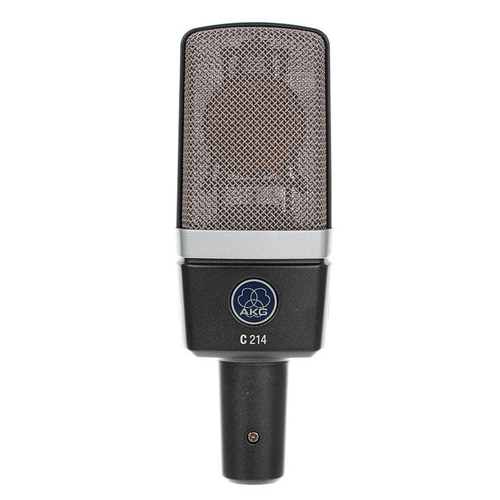

• The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect.

• The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.

Features

• Capsule: 1" large diaphragm condenser
• Sensitivity: 20 mV/Pa (-34 dBV)
• Frequency range: 20 to 20,000Hz
• Equivalent noise level: 13dB-A (IEC 60268-4)
• Polar pattern: cardioid
• Max. SPL: 136/156dB SPL (0/20dB Pad)
• Dynamic range: 123/143dB-A (0/20dB Pad)
• Low-cut filter: 160Hz, 6dB/Octave, switchable
• Attenuation pad: 20dB, switchable
• Patents: AT 395.225, DE 4.103.784, JP 2.815.488
• Dimensions: 160 x 55 mm (6.3 x 2.2 in.)
• Net/shipping weight: 280/1450 g (0.62 / 3.22 lbs)
• Included accessories: H 85 Shockmount, W 214 Windscreen, Metal Carrying Case
• Requires +12V to +52V phantom power

Specifications

• Polar pattern: Cardioid
• Frequency range: 20 to 20,000Hz
• Sensitivity: 20 mV/Pa (-34 dBV)
• Max. SPL: 136/156dB SPL (0/-20dB) (for 0.5% THD)
• Equivalent noise level: 13 dB-A to IEC 60268-4 (A-weighted)
• Signal/noise ratio (A-weighted): 81dB
• Preattenuation pad: 0/-20dB (switchable)
• Bass cut filter slope: 160Hz, 6dB/Octave, switchable
• Impedance: <=200 ohms
• Recommended load impedance: >=1000 ohms
• Supply voltage: 12 to 52 V Phantom power to IEC 61938
• Current consumption: < 2 mA
• Dynamic range: 123/143 dB (0/-20 dB) (A-weighted)
• Connector: IEC standard 3-pin XLR
• Finish matte: grayish blue
• Dimensions: 160 x 55mm (6.3" x 2.2")
• Net weight: 280g (0.62lb.)
• Shipping weight: 1450g (3.22lb.)
• Patent(s): Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488)
